Specification sheets
Project Series "Lonsdale" specification sheets (PDF file)
Entrance combination set with trim
Square entrance set, Square Eurobolt set, and Door Trim
Finishes: Brushed Nickel, Polished
Chrome.
Project Series Square Entry Trim
P-L-SQ-TRIM(BN-V, CP-V, BL-V)
Finishes: Brushed Nickel, Polished
Chrome, Matte Black
Lonsdale Square Entrance
P-L-SQ-ENT (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.
Lonsdale Square Privacy
P-L-SQ-PRI (BN-V, CP-V)
Snib turn on inside lever, emergency release button on outside lever
Finishes: Brushed Nickel, Polished
Chrome.
Lonsdale Square Passage
P-L-SQ-PAS (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.
Lonsdale Round Entrance
P-L-ENT (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.
Lonsdale Round Privacy
P-L-PRI (BN-V, CP-V)
Snib turn on inside lever, emergency release button on outside lever
Finishes: Brushed Nickel, Polished
Chrome.

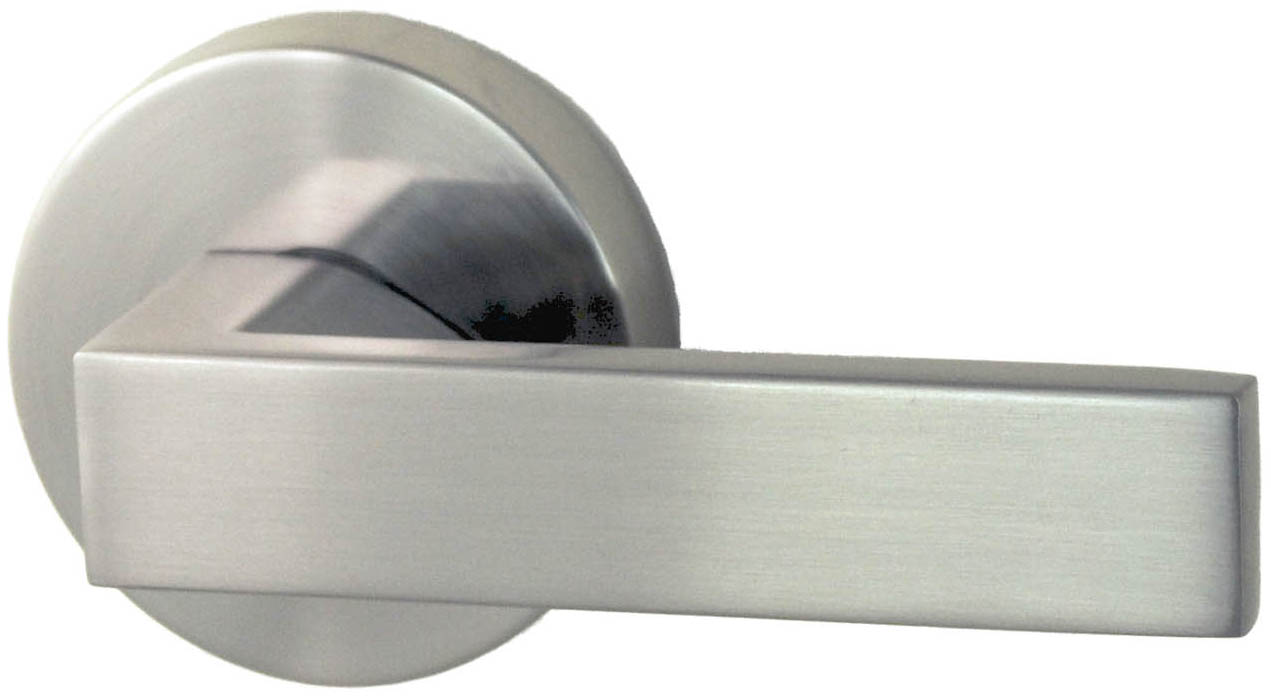

Lonsdale Round Passage
P-L-PAS (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.

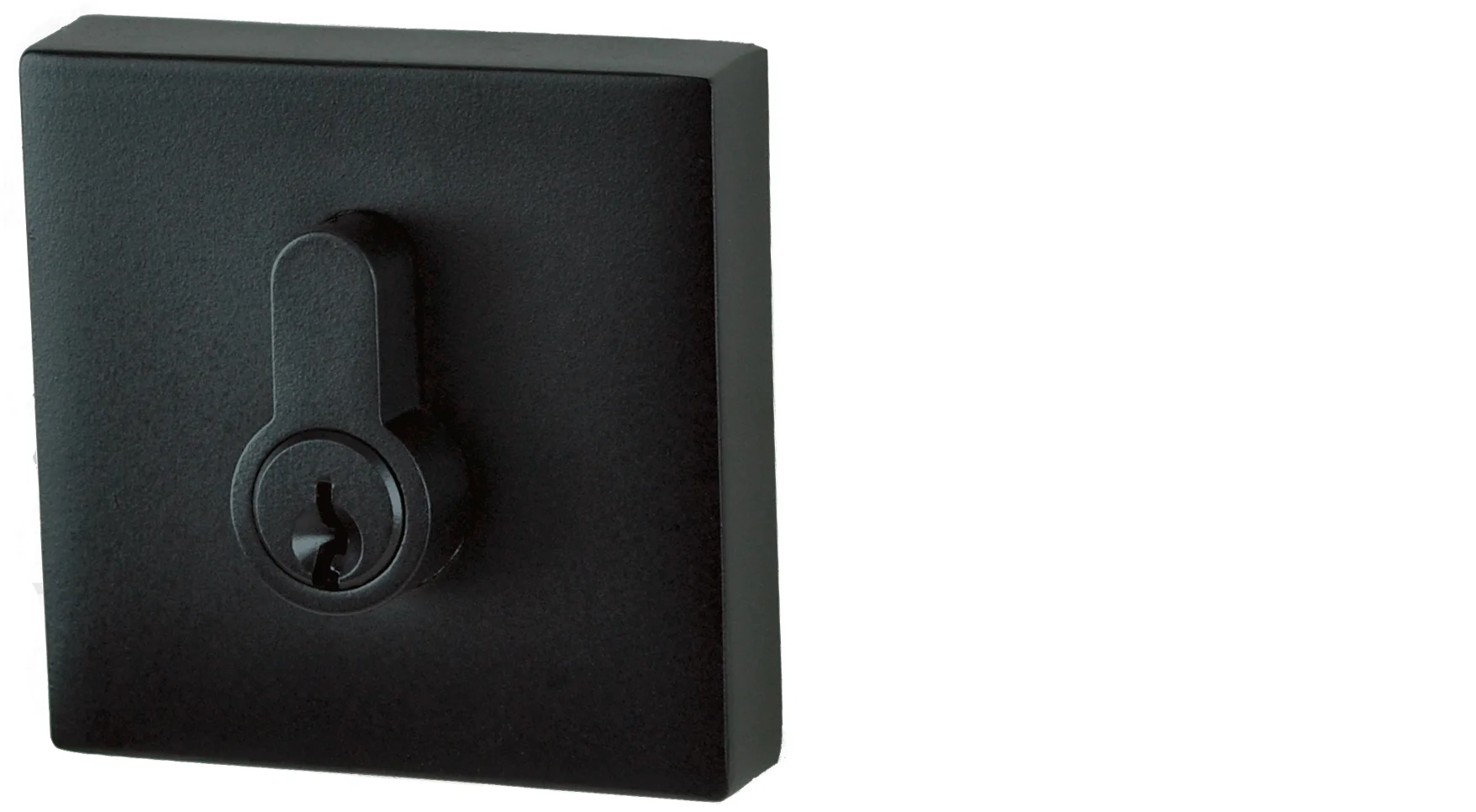

Project Series Square Eurobolt (double cylinder)
P-L-SQ-EB-BLV
Finishes: Matte Black
Project Series Square Eurobolt (double cylinder)
P-L-SQ-EB (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.
Project Series Square Eurobolt (single cylinder)
P-L-SQ-EB1-BLV
Finishes: Matte Black
Project Series Square Eurobolt (single cyliner with thumbturn)
P-L-SQ-EB1 (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.
Project Series Round Eurobolt (single cylinder with thumbturn)
P-L-EB1 (BN-V, CP-V)
Finishes: Brushed Nickel, Polished
Chrome.
Internal snib detail
As used on entrance and privacy sets (inside snib function)
All sets include a latch
